- 2MP resolution
- 2.8~12mm (4.3x) motorised varifocal
- Colour: 0.011 Lux (F1.4, 1/30sec, 30IRE), 0 Lux (IR LED on)
- Maximum 60 fps@2MP (H.265/H.264)
- WiseIR: IR viewable length 40m (131.23 ft)
- Day & Night (ICR), extremeWDR (150 dB)
- DIS with built-in Gyro sensor
- Hard-coated dome bubble
- Analytics events based on AI engine (NPU) : Object detection (Person/Face/Vehicle – car, truck, bus, bicycle, motorcycle/License plate), IVA (Virtual line/Area, Enter/Exit, Loitering, Direction, Intrusion)
- Analytics events : Defocus detection, Motion detection, Tampering, Fog detection Audio detection, Sound classification, Shock detection, Appear/Disappear
- IP66, IP67, NEMA4X, IK10
Cameras, Sécurité, Série X, Vidéo Surveillance

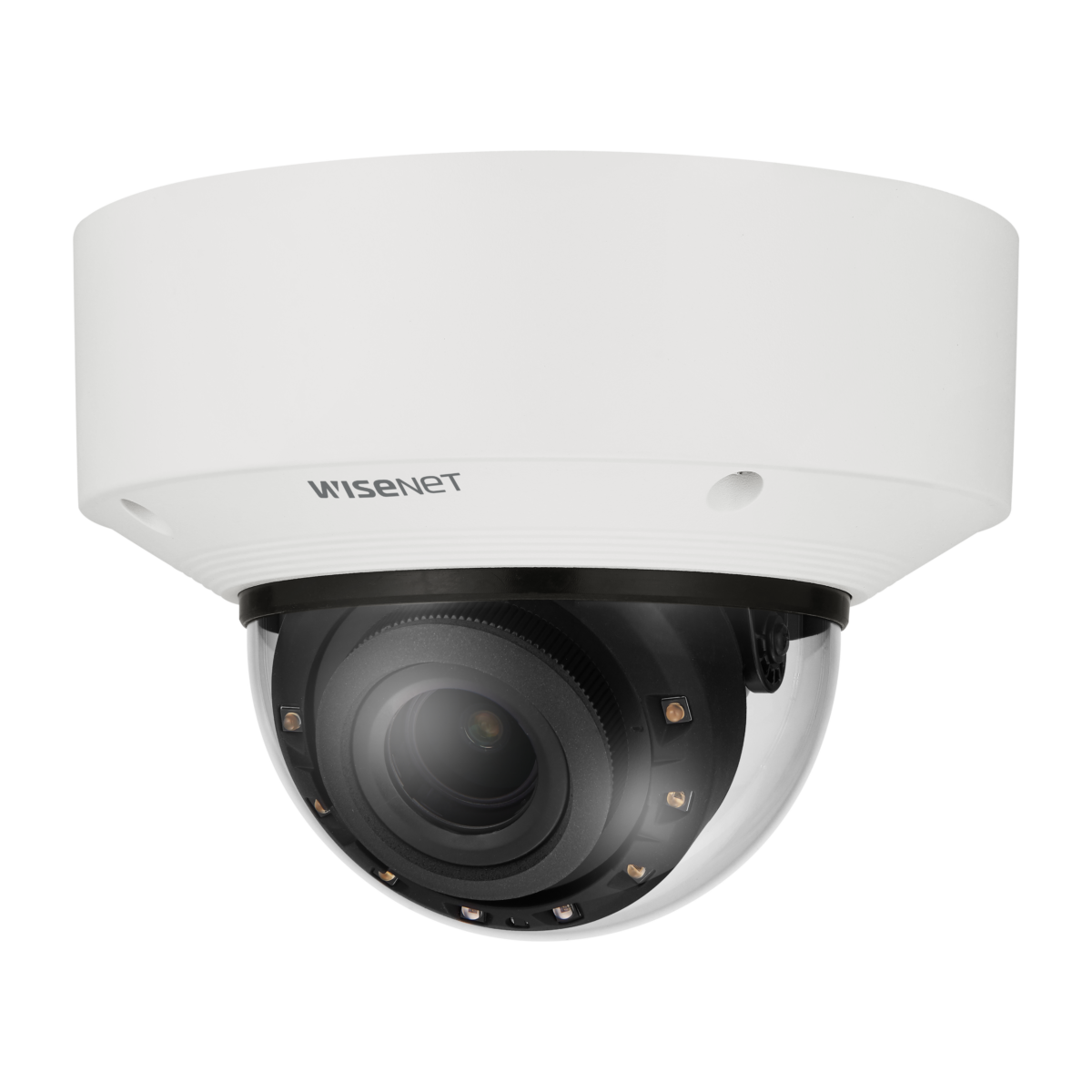

2MP AI IR Vandal Dome Camera
La XNV-C6083R est une caméra dôme AI 2MP avec IR intégré
Key Features
Video | ||
---|---|---|
Imaging Device | 1/2.8″ progressive CMOS | |
Resolution | 1920×1080, 1280×1024, 1280×960, 1280×720, 1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 | |
Max. Framerate | H.265/H.264: Max. 60fps/50fps(60Hz/50Hz) MJPEG: Max. 30fps |
|
Min. Illumination | Color: 0.01Lux(F1.4, 1/30sec, 30IRE) B/W: 0.001Lux(F1.4, 1/30sec, 30IRE), 0Lux(IR LED on), 30/25fpsColor: 0.02Lux(F1.4, 1/60sec, 30IRE) BW: 0.002Lux(F1.4, 1/60sec, 30IRE), 0Lux(IR LED on), 60/50fps |
|
Video Out | USB: Micro USB Type B, 1280×720 for installation | |
Lens | ||
Focal Length (Zoom Ratio) | 2.8~12mm(4.3x) motorized varifocal | |
Max. Aperture Ratio | F1.4(Wide)~F3.6(Tele) | |
Angular Field of View | H: 120°(Wide)~27°(Tele) V: 63°(Wide)~15°(Tele) D: 143°(Wide)~32°(Tele) |
|
Min. Object Distance | 0.5m(1.64ft) | |
Focus Control | Simple focus, Manual | |
Lens Type | DC auto iris with hall sensor(IR corrected) | |
Pan / Tilt / Rotate | ||
Pan / Tilt / Rotate Range | 0°~360° / -45°~75° / 0°~355° | |
Operational | ||
Camera Title | Displayed up to 85 characters | |
Day & Night | Auto(ICR) | |
Backlight Compensation | BLC, HLC, WDR, SSDR | |
Wide Dynamic Range | extremeWDR(150dB) | |
Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ | |
Digital Image Stabilization | Support(built-in gyro sensor) | |
Defog | Support | |
Motion Detection | 8ea, 8point Polygonal zones | |
Privacy Masking | 32ea, 4point Quadrangle zones – Color: Gray/Green/Red/Blue/Black/White – Mosaic |
|
Gain Control | Off / Max Gain / Manual | |
White Balance | ATW / NarrowATW / AWC / Manual / Indoor / Outdoor | |
LDC | Support(Fill/stretch mode) | |
Electronic Shutter Speed | Minimum / Maximum / Anti flicker(2~1/12,000sec) prefer shutter control(Based on AI engine) |
|
Video Rotation | Flip, Mirror, Hallway view(90°/270°) | |
Analytics | Classified object type: Person/Face/Vehicle/License plate Attributes: Vehicle(Type: car/bus/truck/motorcycle/bicycle) Support DetectionShot Analytics events based on AI engine – Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events – Defocus detection, Motion detection, Tampering, Fog detection, Audio detection, Sound classification, Shock detection, Virtual area(Appear/Disappear) |
|
Business Intelligence | Based on AI engine: People counting, Queue management, Heatmap | |
Alarm I/O | 2 configurable I/O ports | |
Alarm Triggers | Analytics, Network disconnect, Alarm input, App event, Time schedule, MQTT subscription | |
Alarm events | When alarm trigger occurred – File upload(image): e-mail/FTP – Notification: e-mail – Recording: SD/SDHC/SDXC or NAS recording at event triggers – Alarm output – Handover: PTZ preset, send message by HTTP/HTTPS/TCP – Audio clip playback – MQTT: publication |
|
Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
|
Audio Out | Line out, Max.output level: 1Vrms | |
IR Viewable Length | WiseIR 40m(131.23ft) | |
Network | ||
Ethernet | Metal shielded RJ-45(10/100BASE-T) | |
Video Compression | H.265/H.264: Main/Baseline/High, MJPEG | |
Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps AAC-LC: 48Kbps at 16KHz |
|
Smart Codec | Manual(5ea area), WiseStreamⅡ, WiseStreamⅢ(Based on AI engine) | |
Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
Streaming | Unicast(20 users) / Multicast Multiple streaming(Up to 10 profiles, 3 virtual channel support) |
|
Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP, CDP, SRTP(TCP, UDP Unicast), MQTT | |
Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP, EAP-PEAP MSCHAPv2) Device Certificate(Hanwha Techwin Root CA, pre-installed) Secure by default certificate HTPM(Hanwha Trusted platform module) Secure OS/Boot/Storage, Verify firmware forgery CyberSecurity assuarance program UL CAP(UL 2900-1) |
|
Application Programming Interface | ONVIF Profile S/G/T/M SUNAPI(HTTP API) Wisenet open platform |
|
General | ||
Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Portuguese, Czech, Polish, Turkish, Dutch, Greek, Hungarian | |
Edge Storage | Micro SD/SDHC/SDXC 1slot 512GB | |
Memory | 2GB RAM, 512MB Flash | |
Environmental & Electrical | ||
Operating Temperature / Humidity | -40°C~+55°C(-40°F~+131°F) * Start up should be done at above -20°C 0~95%RH(non-condensing) Humidity control /w AIR vent |
|
Storage Temperature / Humidity | -50°C~+60°C(-58°F~+140°F) / 0~90% RH | |
Certification | IP66/IP67, NEMA4X, IK10 | |
Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
Power Consumption | PoE: Max 12.95W, typical 10.8W 12VDC: Max 12.5W, typical 10.0W |
|
Mechanical | ||
Color / Material | White / Aluminum Hard-coated dome bubble |
|
RAL Code | RAL9003 | |
Product Dimensions / Weight | ø160x118mm(ø6.30×4.65″), 1450g(3.20 lb) | |
Compatible Conduit hole / Gangbox | 12.7mm(1/2″)(M20) single, double, 4″ octagon, 4″ square |
|
Hanging Mount (Dome) | SBP-167HMW | |
Certifications & Standards | ||
EMC | FCC 47 CFR 15 Subpart B Class A ICES-3(A)/NMB-3(A) CE/UKCA – EN 55032 Class A, EN 50130-4, EN 61000-3-2, EN 61000-3-3 VCCI CISPR 32 Class A RCM AS/NZS CISPR 32 Class A KS C 9832 Class A , KS C 9835 |
|
Safety | UL 62368-1, CAN/CSA C22.2 NO. 62368-1 IEC/EN 62471 |
|
Environment | IEC/EN 63000 IEC/EN 60529 IP66/IP67, IEC/EN 62262 IK10 NEMA 250 type 4X |
|
DORI (EN62676-4 standard) | ||
Detect (25PPM/ 8PPF) | Wide: 22.2m(72.74ft) / Tele: 159.9m(524.76ft) | |
Observe (63PPM/ 19PPF) | Wide: 8.9m(29.09ft) / Tele: 64.0m(209.90ft) | |
Recognize (125PPM/ 38PPF) | Wide: 4.4m(14.55ft) / Tele: 32.0m(104.95ft) | |
Identify (250PPM/ 76PPF) | Wide: 2.2m(7.27ft) / Tele: 16.0m(52.48ft) |
