| Video |
| Imaging Device |
1/2.8″ 2MP CMOS |
| Resolution |
1920×1080, 1280×1024, 1280×960, 1280×720,
1024×768, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate |
H.265/H.264: Max. 60fps/50fps(60Hz/50Hz)
MJPEG: Max. 30fps/25fps(60Hz/50Hz) |
| Min. Illumination |
Color: 0.05Lux (1/30sec, F1.6)
B/W: 0.005Lux (1/30sec, F1.6) |
| Video Out |
CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation |
| Lens |
| Focal Length (Zoom Ratio) |
4.44 ~ 142.6mm (Optical 32X) (digital 32x, total 1024x zoom) |
| Max. Aperture Ratio |
F1.6(Wide) ~ F4.4(Tele) |
| Angular Field of View |
H: 64.66˚(Wide)~2.29˚(Tele) / V: 38.08˚(Wide)~1.30˚(Tele) |
| Min. Object Distance |
Wide 1.5m(4.92ft) ,Tele 2m(6.56ft) |
| Focus Control |
Auto, One shot AF |
| Lens Type |
DC auto iris |
| Operational |
| Camera Title |
Displayed up to 85 characters |
| Direction Indicator |
Support |
| Day & Night |
Auto(ICR) |
| Backlight Compensation |
BLC, HLC, WDR, SSDR |
| Wide Dynamic Range |
120dB |
| Digital Noise Reduction |
SSNRⅤ |
| Digital Image Stabilization |
Support |
| Defog |
Support |
| Motion Detection |
8ea, 8point polygonal zones |
| Privacy Masking |
32ea, rectangular Support
– Color: Grey/Green/Red/Blue/Black/White
– Mosaic |
| Gain Control |
OFF/ LOW/ MID/ HIGH |
| White Balance |
ATW / AWC / Manual / Indoor / Outdoor / Mercury / Sodium |
| Electronic Shutter Speed |
Minimum / Maximum / Anti flicker (2~1/12,000sec) |
| Video Rotation |
Flip, Mirror |
| Analytics |
Defocus detection, Directional detection, Fog detection, Face detection, Motion detection, Appear/Disappear, Enter/Exit, Loitering, Tampering, Virtual line, Audio detection, Sound classification |

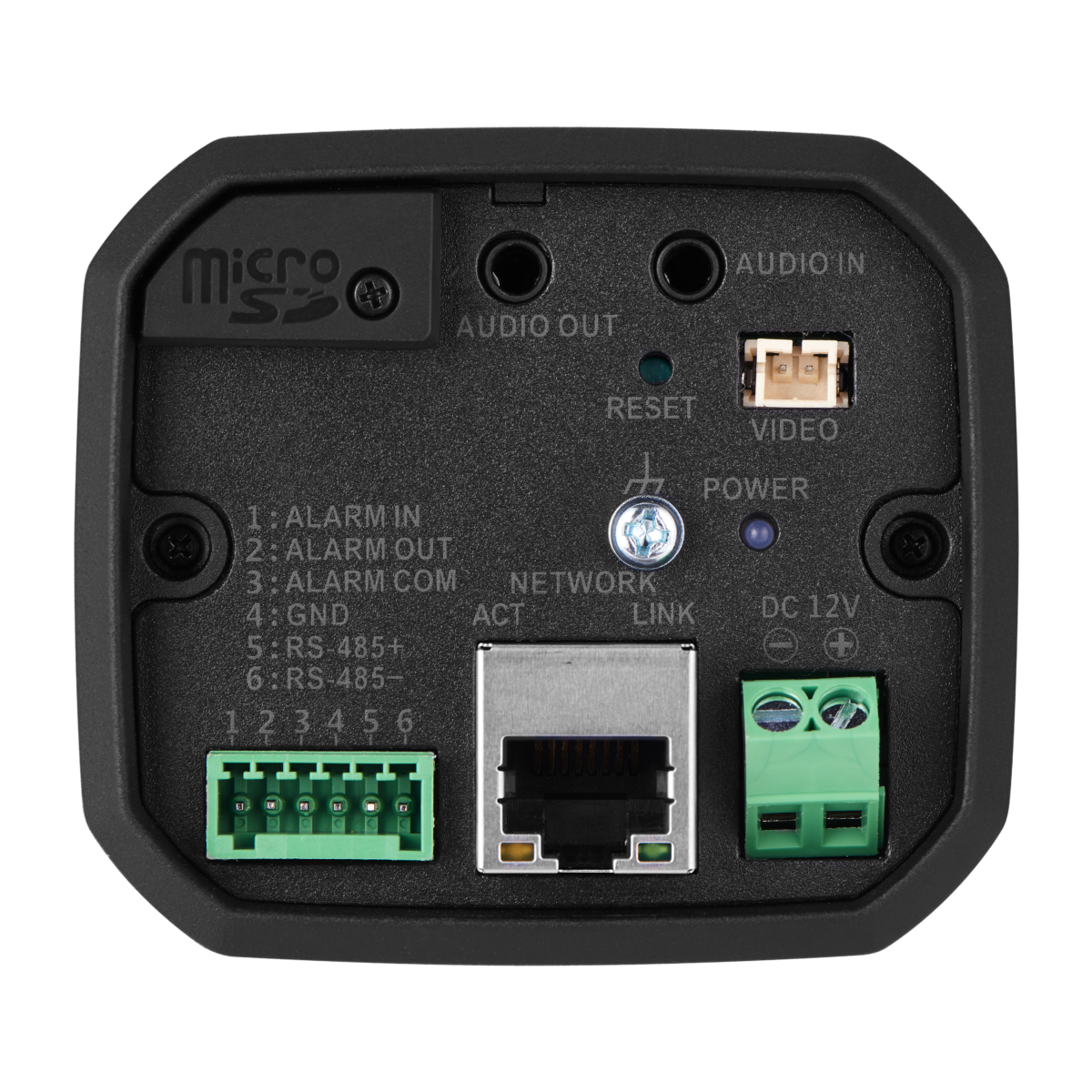

| Serial Interface |
RS-485 (Samsung-T, Pelco-D/P, Panasonic, Bosch, AD, GE, Vicon, Honeywell) |
| Alarm I/O |
Input 1ea / Output 1ea |
| Alarm Triggers |
Analytics, Network disconnect, Alarm input |
| Alarm events |
File upload via FTP and e-mail
Notification via e-mail
SD/SDHC/SDXC or NAS recording at Event Triggers
Alarm output
Handover(PTZ Preset) |
| Audio In |
Selectable(mic in/line in)
Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
| Audio Out |
Line out, Max.output level: 1Vrms |
| Network |
| Ethernet |
Metal shielded RJ-45(10/100BASE-T) |
| Video Compression |
H.265/H.264: Main/Baseline/High, MJPEG |
| Audio Compression |
G.711 u-law /G.726 Selectable
G.726(ADPCM) 8KHz, G.711 8KHz
G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps
AAC-LC: 48Kbps at 16KHz |
| Smart Codec |
Manual(5ea area), WiseStreamⅡ |
| Bitrate Control |
H.264/H.265: CBR or VBR
MJPEG: VBR |
| Streaming |
Unicast(20 users) / Multicast
Multiple streaming(Up to 10 profiles) |
| Protocol |
IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP,RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, PIM-SM, UPnP, Bonjour, LLDP, SRTP |
| Security |
HTTPS(SSL) Login Authentication
Digest Login Authentication
IP Address Filtering
User access log
802.1X Authentication(EAP-TLS, EAP-LEAP)
Device certificate(Hanwha Techwin Root CA) |
| Application Programming Interface |
ONVIF Profile S/G/T
SUNAPI(HTTP API)
Wisenet open platform |
| General |
| Webpage Language |
English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek |
| Edge Storage |
Micro SD/SDHC/SDXC 1slot 256GB |
| Memory |
1024MB RAM, 256MB Flash |
| Environmental & Electrical |
| Operating Temperature / Humidity |
-10°C ~ +55°C(-14°F ~ +131°F) / Less than 90% RH |
| Storage Temperature / Humidity |
-50°C~+60°C (-58°F~+140°F) / Less than 90% RH(Non-condensing) |
| Input Voltage |
PoE(IEEE802.3af, Class3), 12VDC |
| Power Consumption |
PoE: Max 7.5W, Typ 5.0W
12VDC: Max 5.7W, Typ 3.7W |
| Mechanical |
| Color / Material |
Black / Metal |
| Product Dimensions / Weight |
72×63.9 x 135.4mm(2.83×2.52×5.33″), 480g(1.06 lb) |
| DORI (EN62676-4 standard) |
| Detect (25PPM/ 8PPF) |
Wide: 60.7m(199.1ft) / Tele: 1921.3m(6303.4ft) |
| Observe (63PPM/ 19PPF) |
Wide: 24.3m(79.6ft) / Tele: 768.5m(2521.4ft) |
| Recognize (125PPM/ 38PPF) |
Wide: 12.1m(39.8ft) / Tele: 384.3m(1260.7ft) |
| Identify (250PPM/ 76PPF) |
Wide: 6.1m(19.9ft) / Tele: 192.1m(630.3ft) |
