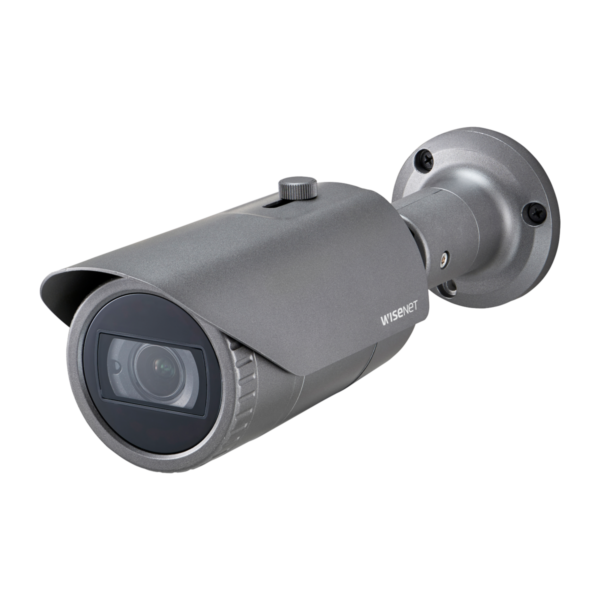

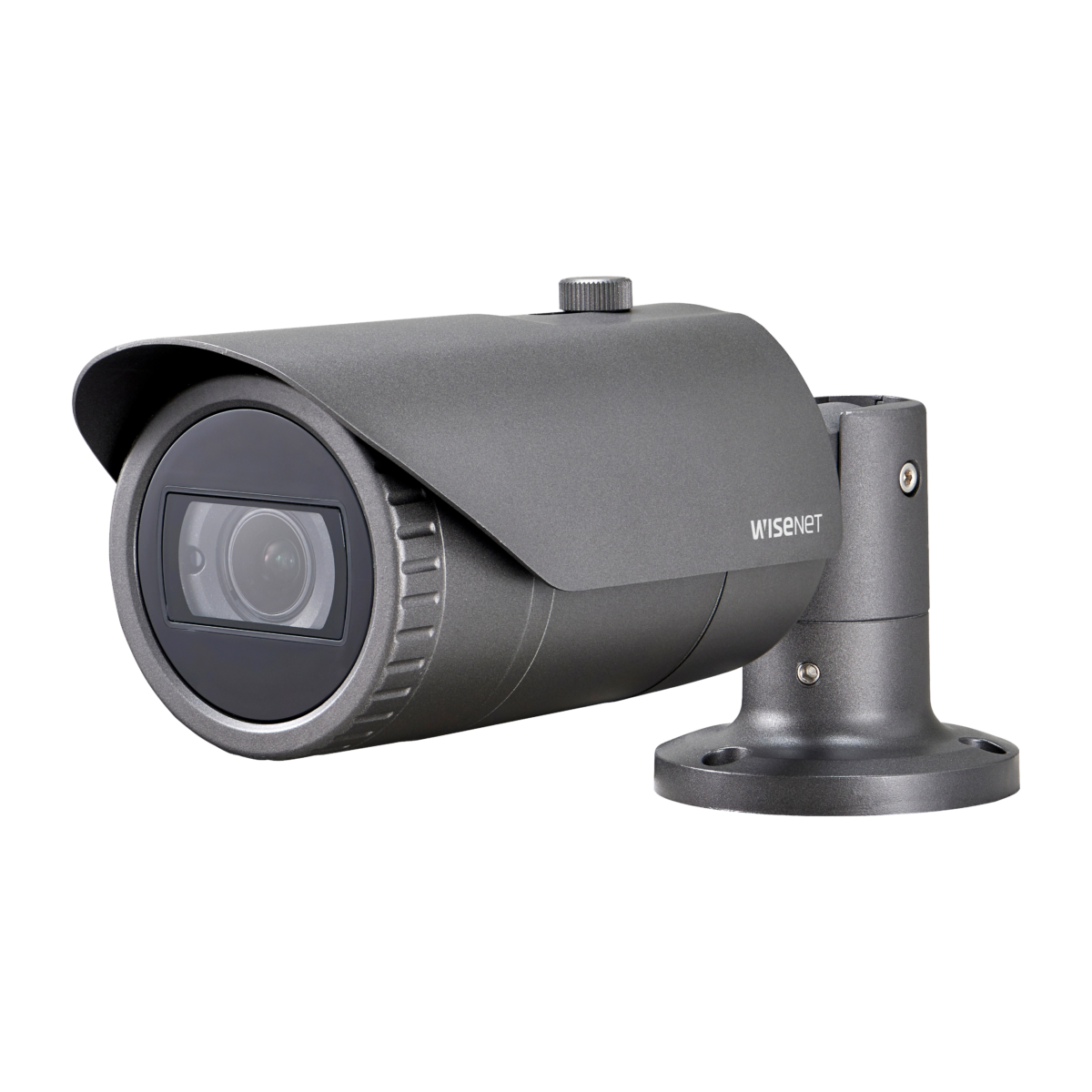

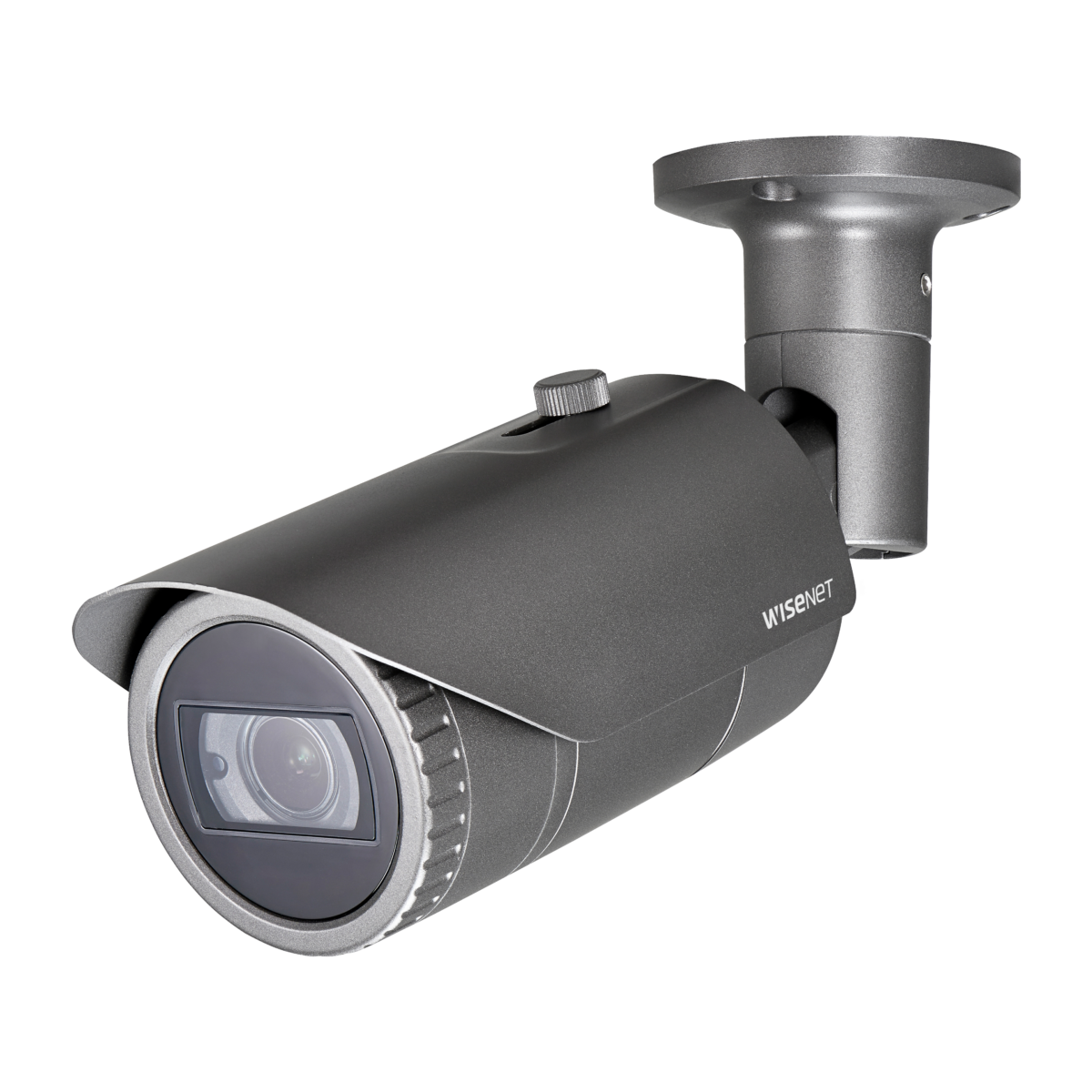

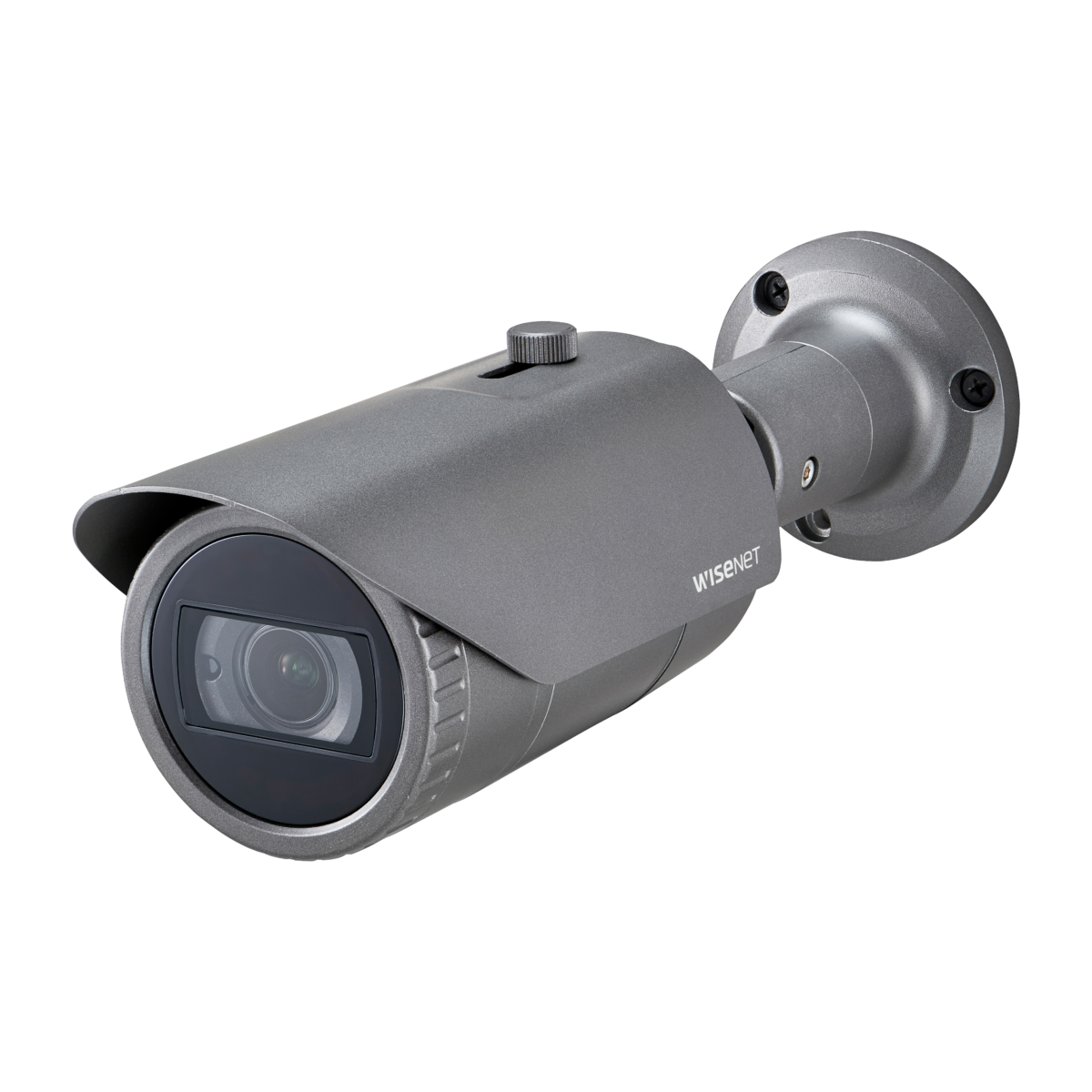

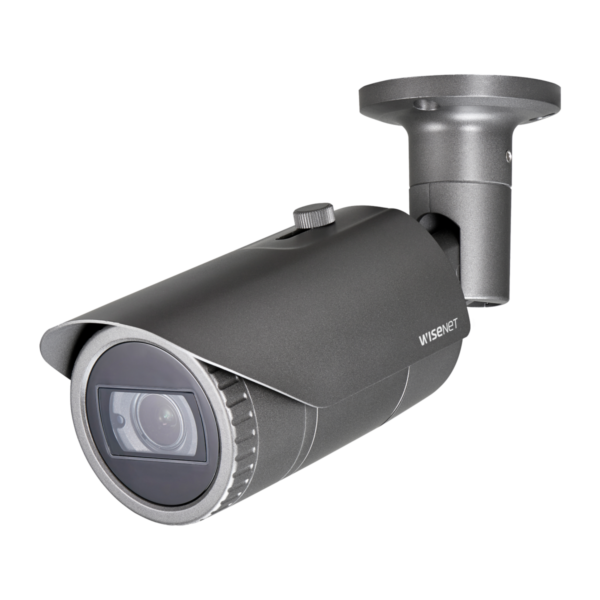

Caméra bullet IR 2MP avec compression H.265 pour une qualité vidéo améliorée et une efficacité accrue de l’espace de stockage. Convient aux conditions de faible luminosité pour une surveillance fiable
Key Features
| Video | ||
|---|---|---|
| Imaging Device | 1/2.8″ CMOS | |
| Resolution | 1920×1080, 1280×960, 1280×720, 800×600, 800×448, 720×576, 720×480, 640×480, 640×360 | |
| Max. Framerate | H.265/H.264: Max. 30fps/25fps(60Hz/50Hz) MJPEG: Max. 15fps (@2MP Max. 4fps) |
|
| Min. Illumination | Color: 0.03Lux(F1.6, 1/30sec) BW: 0Lux(IR LED on) |
|
| Video Out | CVBS: 1.0 Vp-p / 75Ω composite, 720×480(N), 720×576(P) for installation | |
| Lens | ||
| Focal Length (Zoom Ratio) | 3.2~10mm(3.1x) motorized varifocal | |
| Max. Aperture Ratio | F1.6(Wide)~F2.9(Tele) | |
| Angular Field of View | H: 109°(Wide)~33°(Tele) / V: 58°(Wide)~18°(Tele) / D: 132°(Wide)~38°(Tele) | |
| Min. Object Distance | 0.5m (1.64ft) | |
| Focus Control | Simple focus | |
| Lens Type | DC auto iris | |
| Operational | ||
| Camera Title | Displayed up to 85 characters | |
| Day & Night | Auto(ICR) | |
| Backlight Compensation | BLC, WDR, SSDR | |
| Wide Dynamic Range | 120dB | |
| Digital Noise Reduction | SSNR | |
| Motion Detection | 4ea, polygonal zones | |
| Privacy Masking | 6ea, rectangular zones | |
| Gain Control | Low / Middle / High | |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor | |
| LDC | Support | |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) | |
| Video Rotation | Flip, Mirror, Hallway view(90˚/270˚) | |
| Analytics | Motion detection, Tampering, Defocus detection , Virtual area(Intrusion/Enter/Exit), Virtual line(Crossing/Direction) | |
| Alarm I/O | Input 1ea / Output 1ea | |
| Alarm Triggers | Analytics, Network disconnect, Alarm input | |
| Alarm Events | File upload via FTP and e-mail Notification via e-mail SD/SDHC/SDXC or NAS recording at event triggers Alarm output Handover(PTZ preset, Send message by HTTP/HTTPS/TCP) |
|
| Audio In | Selectable(mic in/line in) Supply voltage: 2.5VDC(4mA), Input impedance: 2K Ohm |
|
| IR Viewable Length | 30m(98.42ft) | |
| Network | ||
| Ethernet | RJ-45(10/100BASE-T) | |
| Video Compression | H.265/H.264: Main/High, MJPEG | |
| Audio Compression | G.711 u-law /G.726 Selectable G.726(ADPCM) 8KHz, G.711 8KHz G.726: 16Kbps, 24Kbps, 32Kbps, 40Kbps |
|
| Smart Codec | WiseStreamⅡ | |
| Bitrate Control | H.264/H.265: CBR or VBR MJPEG: VBR |
|
| Streaming | Unicast(6 users) / Multicast Multiple streaming(Up to 3 profiles) |
|
| Protocol | IPv4, IPv6, TCP/IP, UDP/IP, RTP(UDP), RTP(TCP), RTCP, RTSP, NTP, HTTP, HTTPS, SSL/TLS, DHCP, FTP, SMTP, ICMP, IGMP, SNMPv1/v2c/v3(MIB-2), ARP, DNS, DDNS, QoS, UPnP, Bonjour, LLDP | |
| Security | HTTPS(SSL) Login Authentication Digest Login Authentication IP Address Filtering User access log 802.1X Authentication(EAP-TLS, EAP-LEAP) |
|
| Application Programming Interface | ONVIF Profile S/G/T SUNAPI(HTTP API) Wisenet open platform |
|
| General | ||
| Webpage Language | English, Korean, Chinese, French, Italian, Spanish, German, Japanese, Russian, Swedish,, Portuguese, Czech, Polish, Turkish, Dutch, Hungarian, Greek | |
| Edge Storage | Micro SD/SDHC/SDXC 1slot 128GB | |
| Memory | 512MB RAM, 256MB Flash | |
| Environmental & Electrical | ||
| Operating Temperature / Humidity | -30°C ~ +55°C(-22°F ~ +131°F) / 0~90% RH * Start up should be done at above -20°C |
|
| Storage Temperature / Humidity | -30°C ~ +60°C(-22°F ~ +140°F) / 0~90% RH | |
| Certification | IP66, IK10 | |
| Input Voltage | PoE(IEEE802.3af, Class3), 12VDC | |
| Power Consumption | PoE: Max 7.40W, typical 5.40W 12VDC: Max 6.50W, typical 4.80W |
|
| Mechanical | ||
| Color / Material | Dark grey / Aluminum | |
| Product Dimensions / Weight | ø78.0×259.8mm(ø3.07×10.23″), 900g(1.98 lb) | |
| DORI (EN62676-4 standard) | ||
| Detect (25PPM/ 8PPF) | Wide: 27.4m(89.85ft) / Tele: 128.8m(422.56ft) | |
| Observe (63PPM/ 19PPF) | Wide: 11.0m(35.94ft) / Tele: 51.5m(169.02ft) | |
| Recognize (125PPM/ 38PPF) | Wide: 5.5m(17.97ft) / Tele: 25.8m(84.51ft) | |
| Identify (250PPM/ 76PPF) | Wide: 2.7m(8.99ft) / Tele: 12.9m(42.26ft) | |
