- Analytics based on AI object classification; Person Face, Vehicle, License plate
- AI object attributes Car, Bus, Truck, Motorcycle, Bicycle Virtual area and crossing line rules based on AI object classification
- Defocus detection, Motion detection, Tampering, Audio detection, Sound classification
- 360 degree IR viewable length 25m(82ft)
- Micro SD/SDHC/SDXC 1 slot: Max. 512GB
- Flip, Mirror, Hallway view (90°/270°) per channel
- WiseNRⅡ, Auto prefer shutter control, WiseStreamⅢ, extremeWDR (120dB)
- Maximum 15fps@6MP
- 3.54~6.69mm motorised varifocal, 78° tilt angle
- Compatible with I/O ethernet box to connect alarm and audio devices
- Includes BestShot
- Secure by Default and TPM 2.0 (FIPS 140-2)
- IP66, NEMA4X, IK10
Sécurité, Série P, Vidéo Surveillance

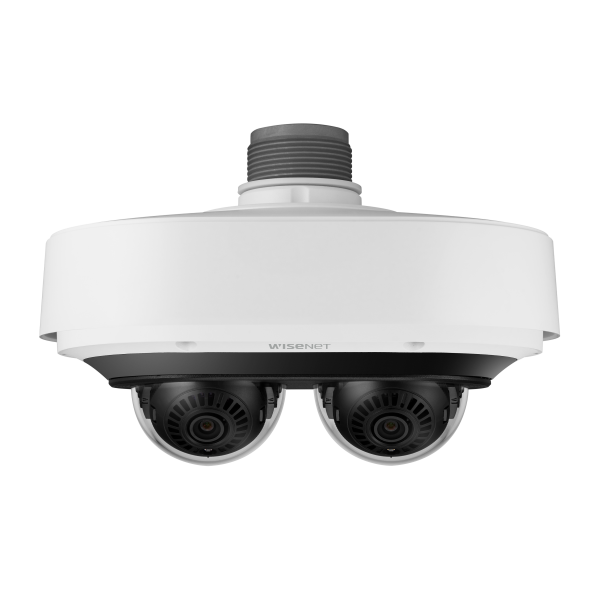

6MP x 2CH AI Multi-directional Camera
Caméra multi-directionnelle 6MP x 2CH AI Résolution élevée, surveillance intelligente.
| Video | |
| Imaging Device | 1/2.8″ CMOS x 2CH |
| Resolution | 3328×1872, 3072×1728, 2592×1944, 2688×1520, 1920×1080, 1600×1200, 1280×1024, 1280×960, 1280×720, 1024×768,
800×600, 800×448, 720×576, 720×480, 640×480, 640×360, 320×240 |
| Max. Framerate | H.265/H.264: 6MP Max.15fps MJPEG: Max.15fps |
| Min. Illumination | Color: 0.16lux(F1.67, 1/30sec, 30IRE) BW: 0.016lux(F1.67, 1/30sec, 30IRE), 0lux(IR LED on) |
| Video Out | USB: micro USB Type B, 1280×720 for installation |
| Lens | |
| Focal Length (Zoom Ratio) | 3.54~6.69mm(1.9x) motorized varifocal |
| Max. Aperture Ratio | F1.67(Wide)~F2.64(Tele) |
| Angular Field of View | H: 95.08(Wide)~47.64(Tele)
V: 50.78(Wide)~26.7(Tele) D: 112.6(Wide)~54.74(Tele) |
| Min. Object Distance | 1.5m(4.92ft) |
| Focus Control | Simple focus |
| Lens Type | Fixed IRIS |
| Pan / Tilt / Rotate | 0~355° / 0~78° / 0~180° |
| Operational | |
| Camera Title | Displayed up to 85 characters |
| Day & Night | Auto(ICR) |
| Backlight Compensation | BLC, WDR, SSDR |
| Wide Dynamic Range | extremeWDR(120dB) |
| Digital Noise Reduction | WiseNRⅡ(Based on AI engine), SSNRⅤ |
| Motion Detection | 8ea, 8point Polygonal zones |
| Privacy Masking | 6ea, Quadrangle zones – Color : Gray/Black/White |
| Gain Control | Support |
| White Balance | ATW / AWC / Manual / Indoor / Outdoor |
| LDC | Support |
| Electronic Shutter Speed | Minimum / Maximum / Anti flicker (1/5~1/12,000sec) Auto prefer shutter control(Based on AI engine) |
| Video Rotation | Flip, Mirror, Hallway view (90°/270°) – Each channel separately |
| Analytics | Classified object type : Person/Face/Vehicle/License plate Attributes : Vehicle(Type:car/bus/truck/motorcycle/bicycle) Support Bestshot Analytics events based on AI engine – Object detection, Virtual line(Crossing/Direction), Virtual area(Loitering/Intrusion/Enter/Exit) Analytics events* – Defocus detection, Motion detection, Tampering, Virtual area(Appear/Disappear) * Support Audio detection, Sound classification via optional SPM-4210 I/O box |
